Moffett Gateway

overview

A Next-Generation Campus

Moffett Gateway embodies synergy and creativity, sustainability and design, connection and access. With modern amenities, direct access to light rail, and a next-generation campus feel, it represents the future of Silicon Valley innovation. Strategically located at the south-east gateway to Moffett Park, Moffett Gateway offers easy access to the commute critical junctions of HWYs 237 and 101 in Sunnyvale, CA. Moffett Gateway is 612,796 square feet of LEED Certified Platinum, Class A office space on 15.531 acres. Two 7-story towers offer great views of the Santa Cruz Mountains and Silicon Valley. A 14,948 square foot rooftop fitness center and a 49,000 square foot central commons provide best-in-class indoor and outdoor amenities.

15.5 Acre Campus
612,796 Rentable Square Feet
Two 7-Story Class A Office Towers
15,000 Square Foot Fitness Center
LEED Certified Platinum

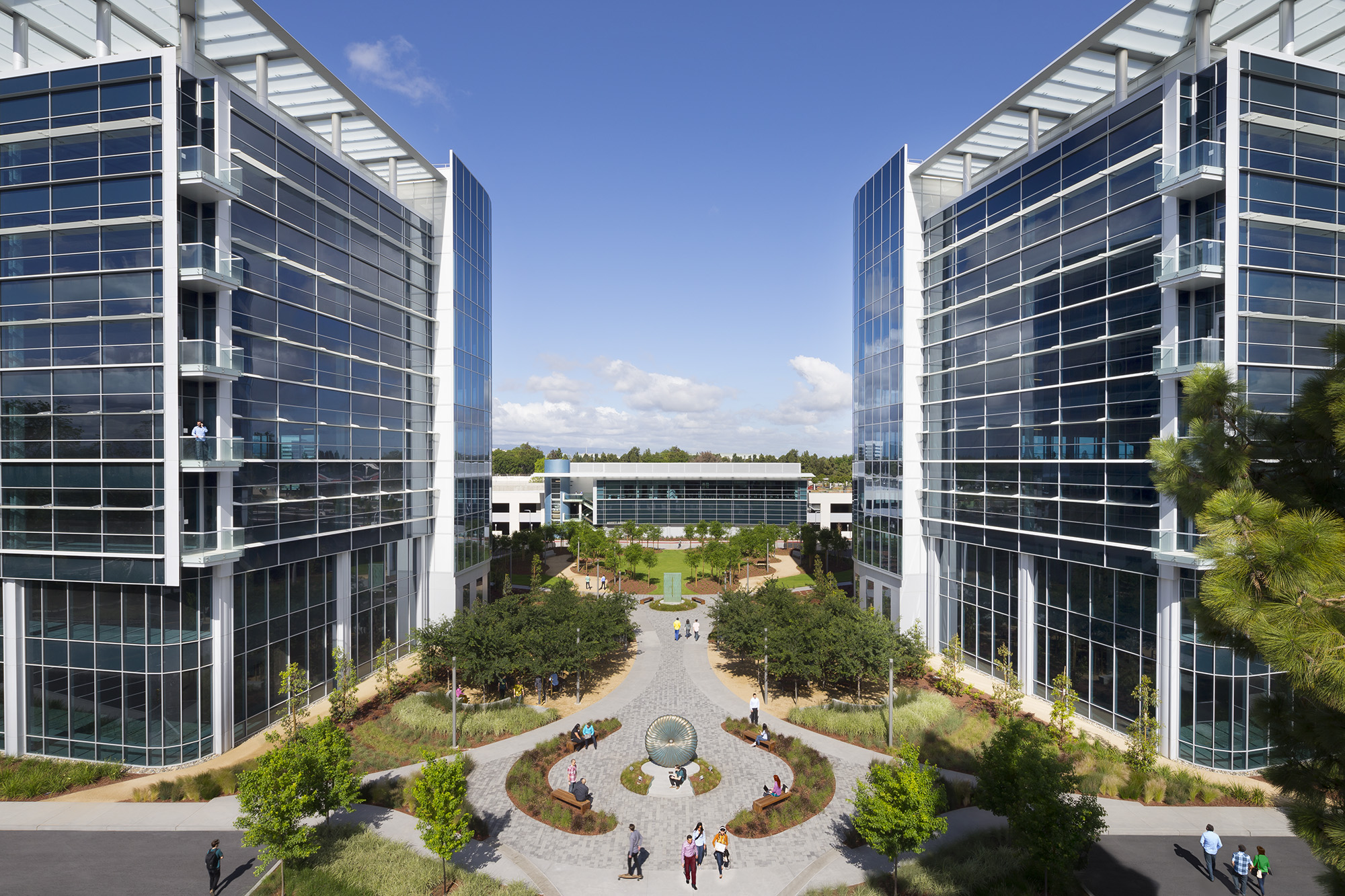

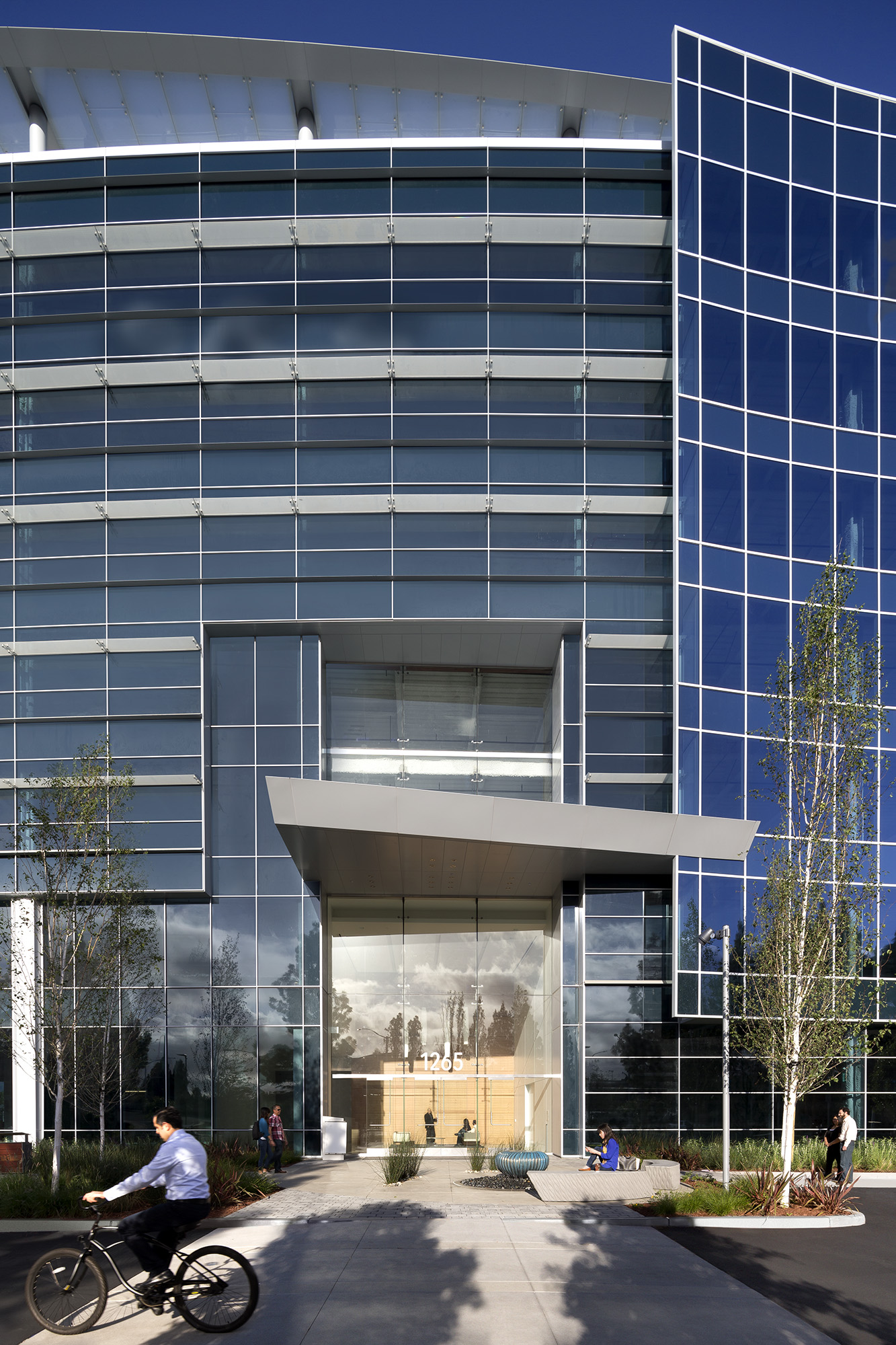

Entry to Lobby

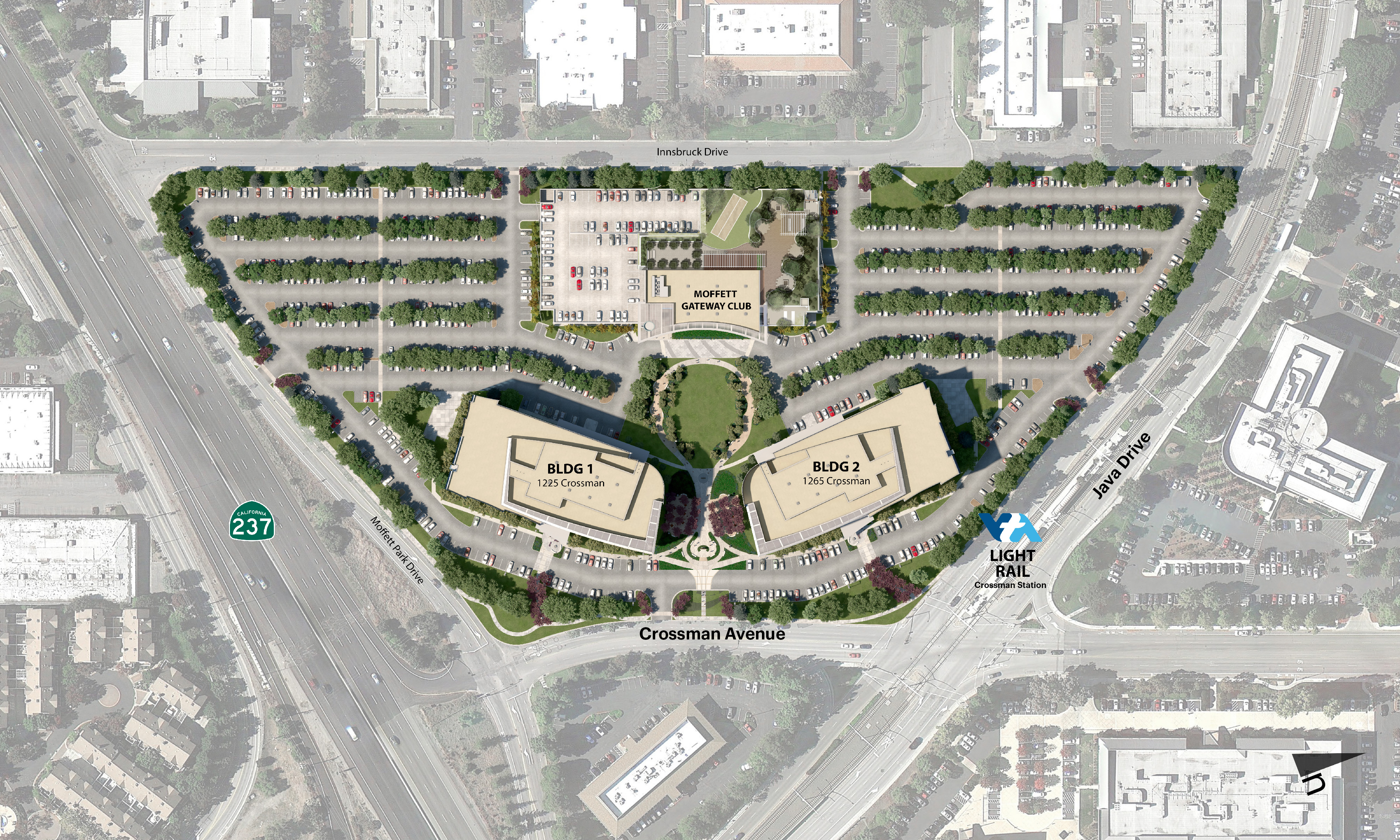

Site Plan

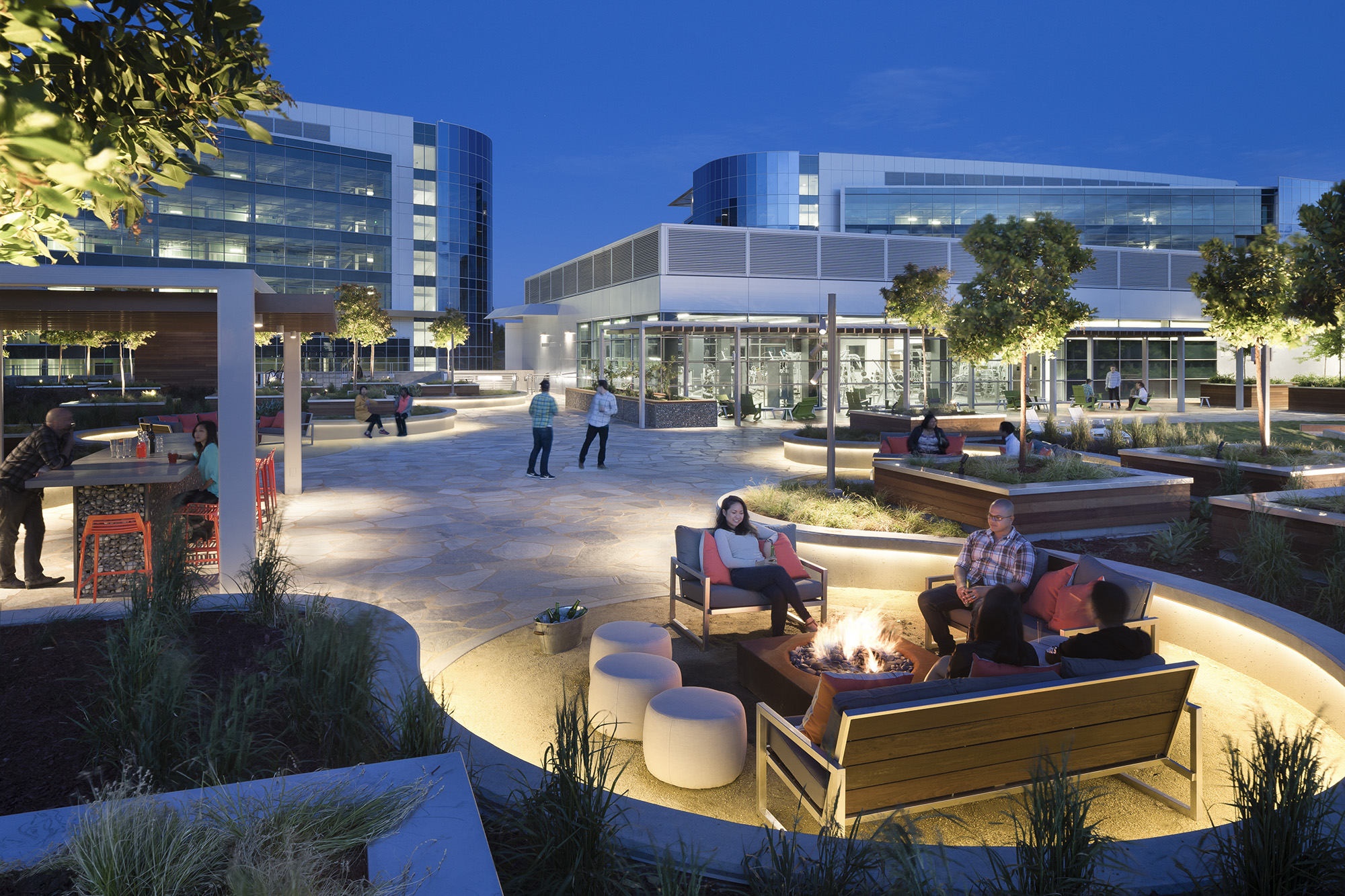

Fire Pits

interiors

Where Wellness Meets the Skyline

Step out of the fitness center and into a 30,000-square-foot garden retreat — complete with bocce courts, fire pits, an outdoor kitchen, and shaded gathering spaces. It's a workday upgrade designed for how today's teams actually want to recharge, connect, and celebrate.

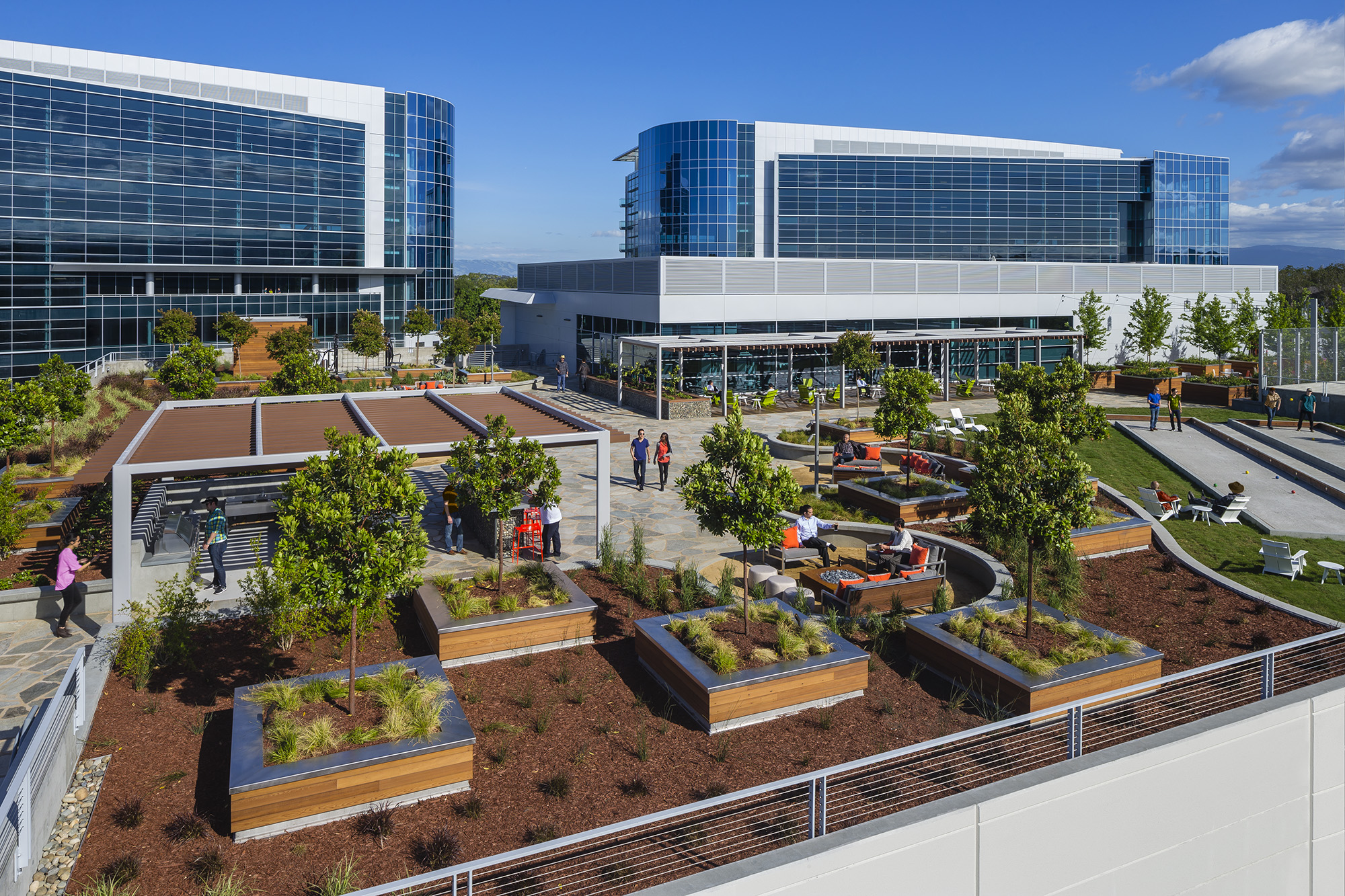

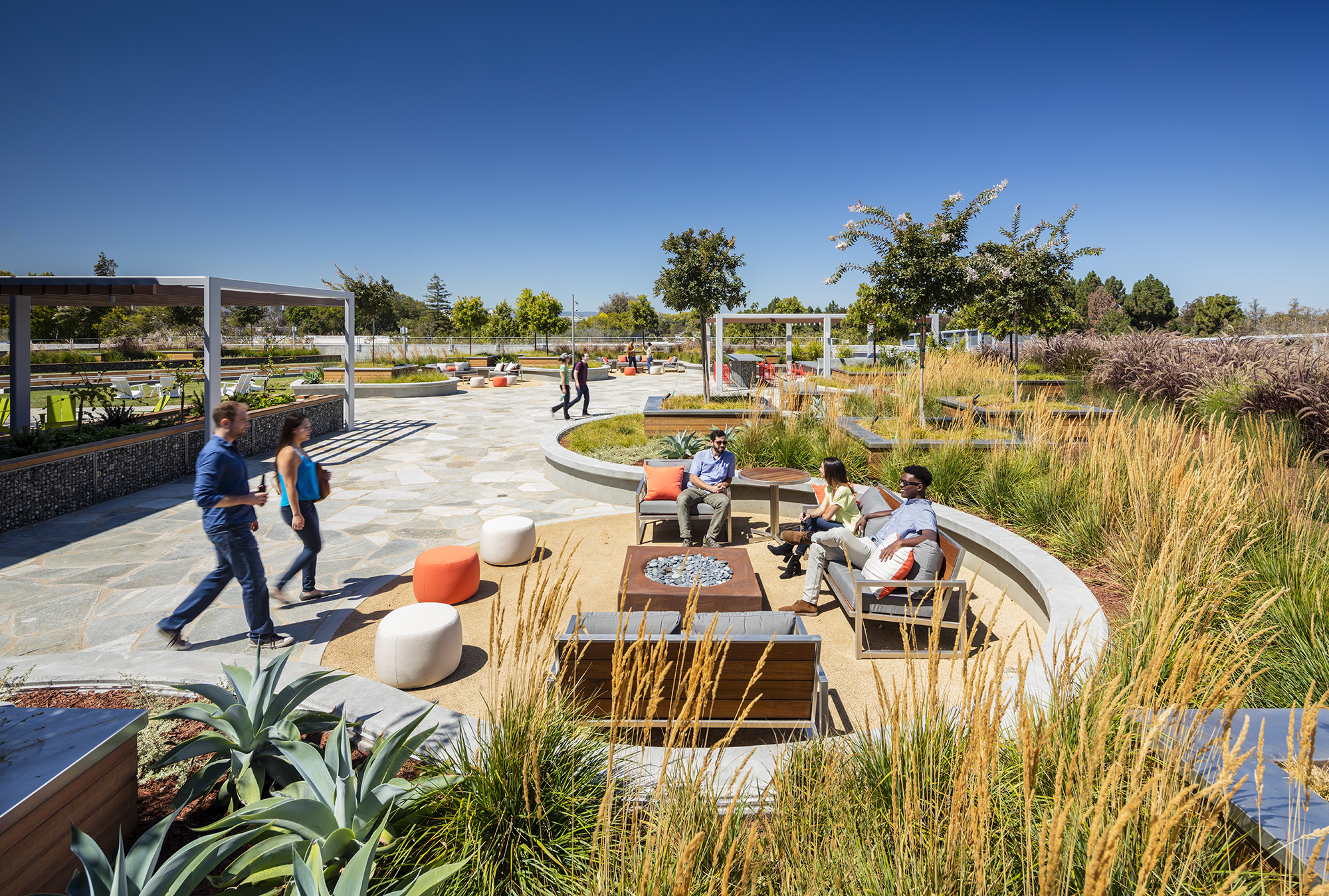

Rooftop Garden
Outdoor Kitchen/BBQ
Multiple Trellis Shaded Areas
Bocce Courts
Fire Pits

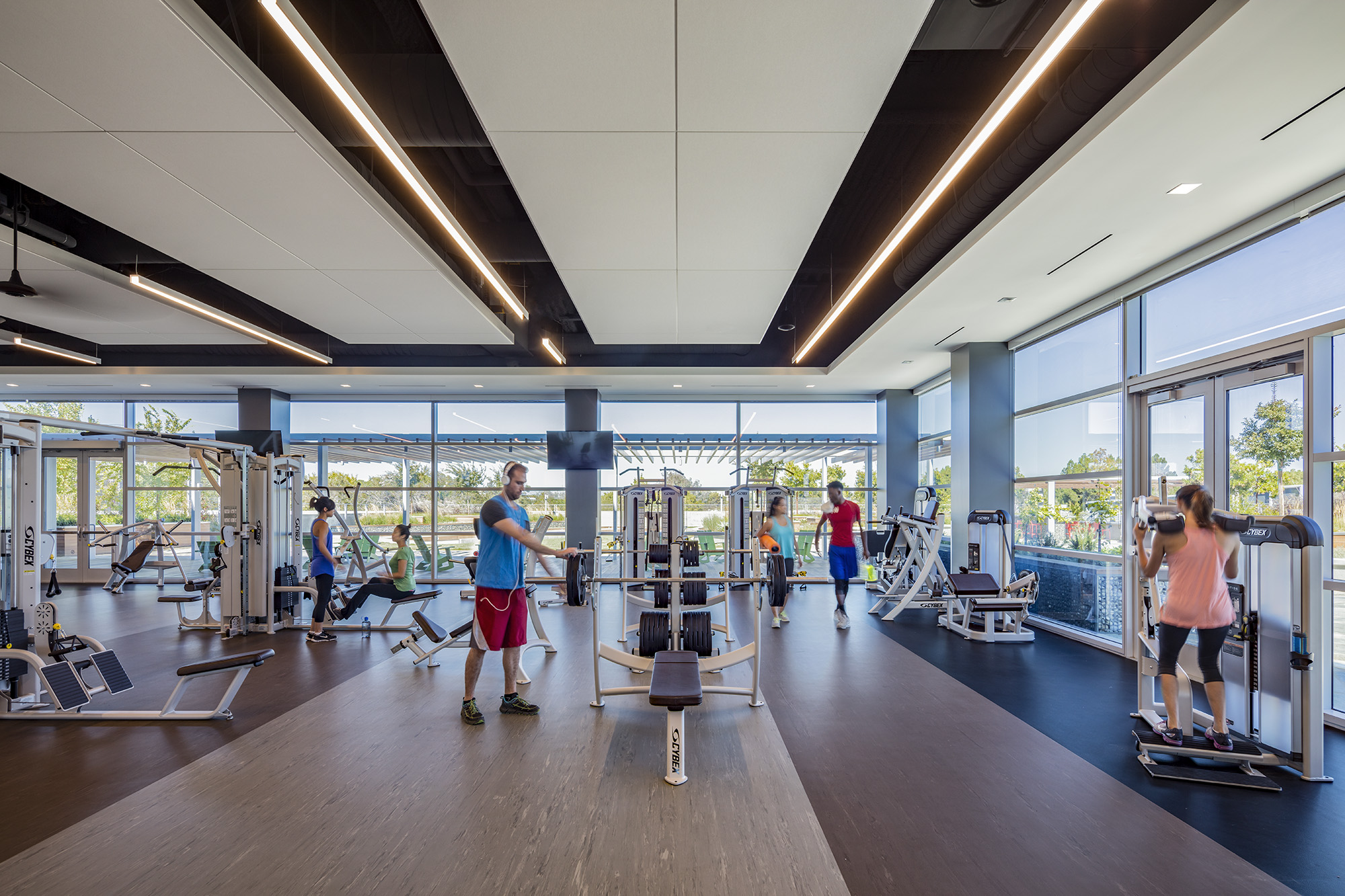

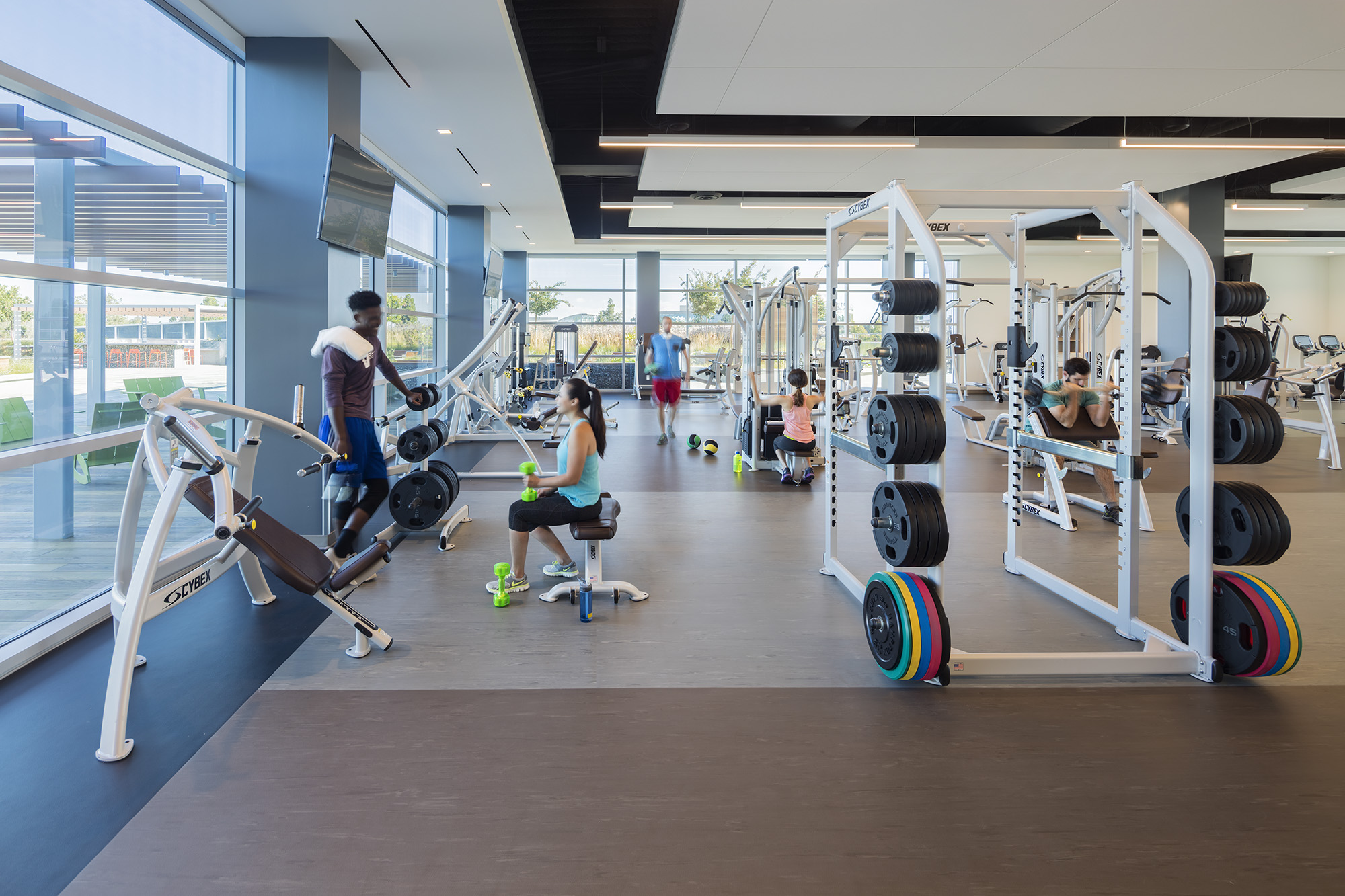

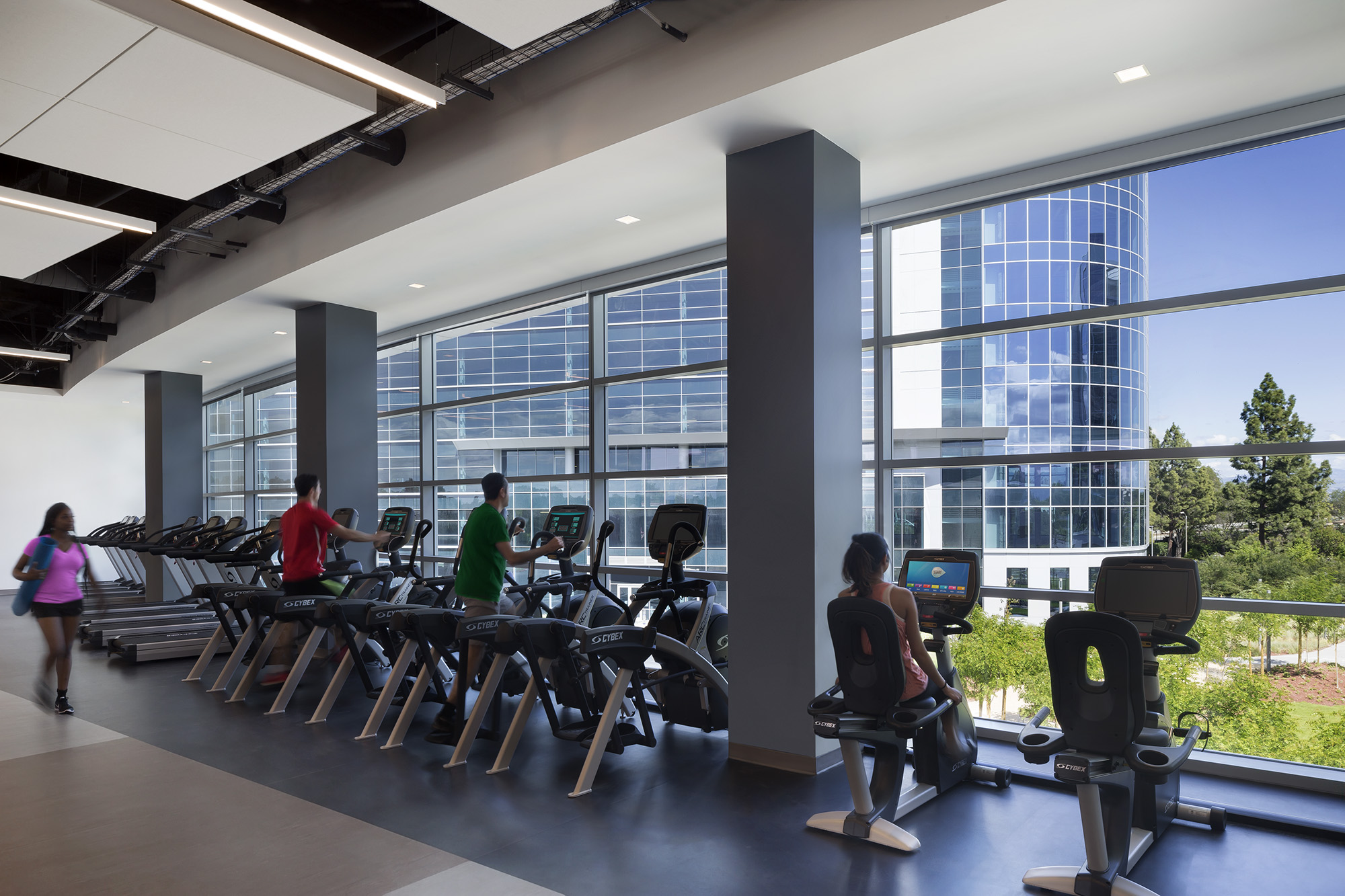

Fitness Center

The 15,000-square-foot fitness center pairs state-of-the-art equipment with sweeping views of the Santa Cruz Mountains and Silicon Valley.

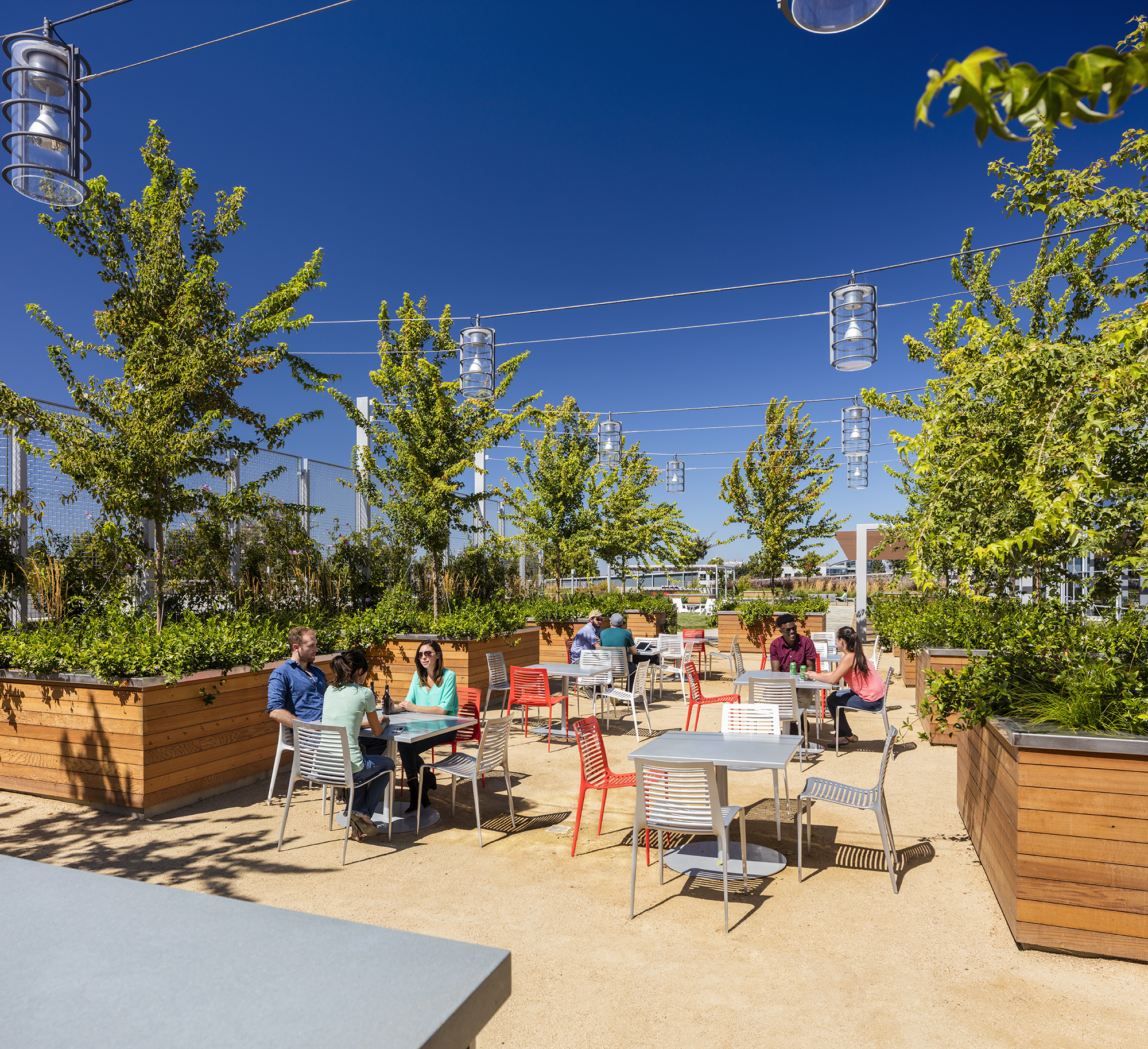

Rooftop Garden

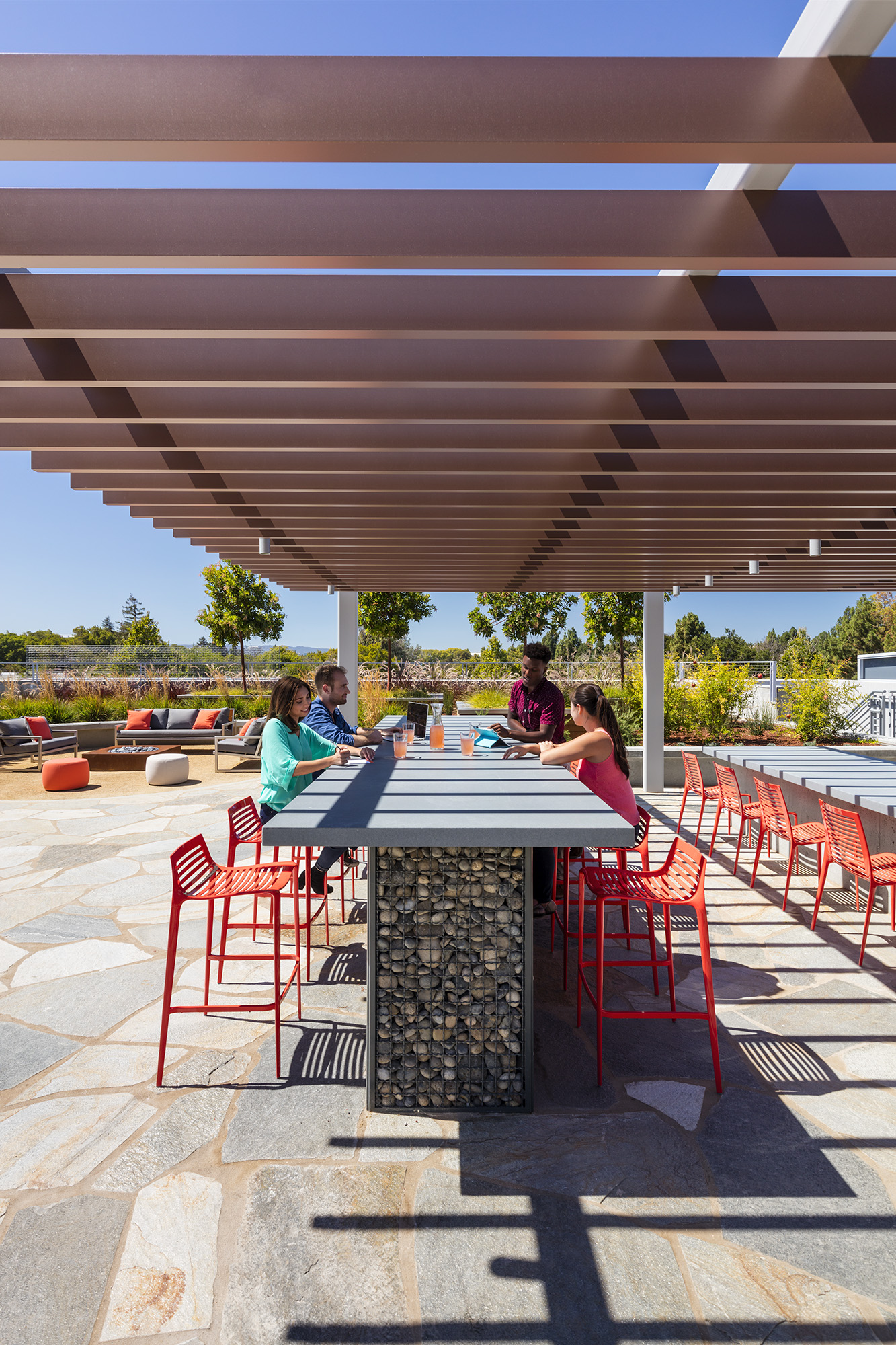

Bar Counterspace
‍

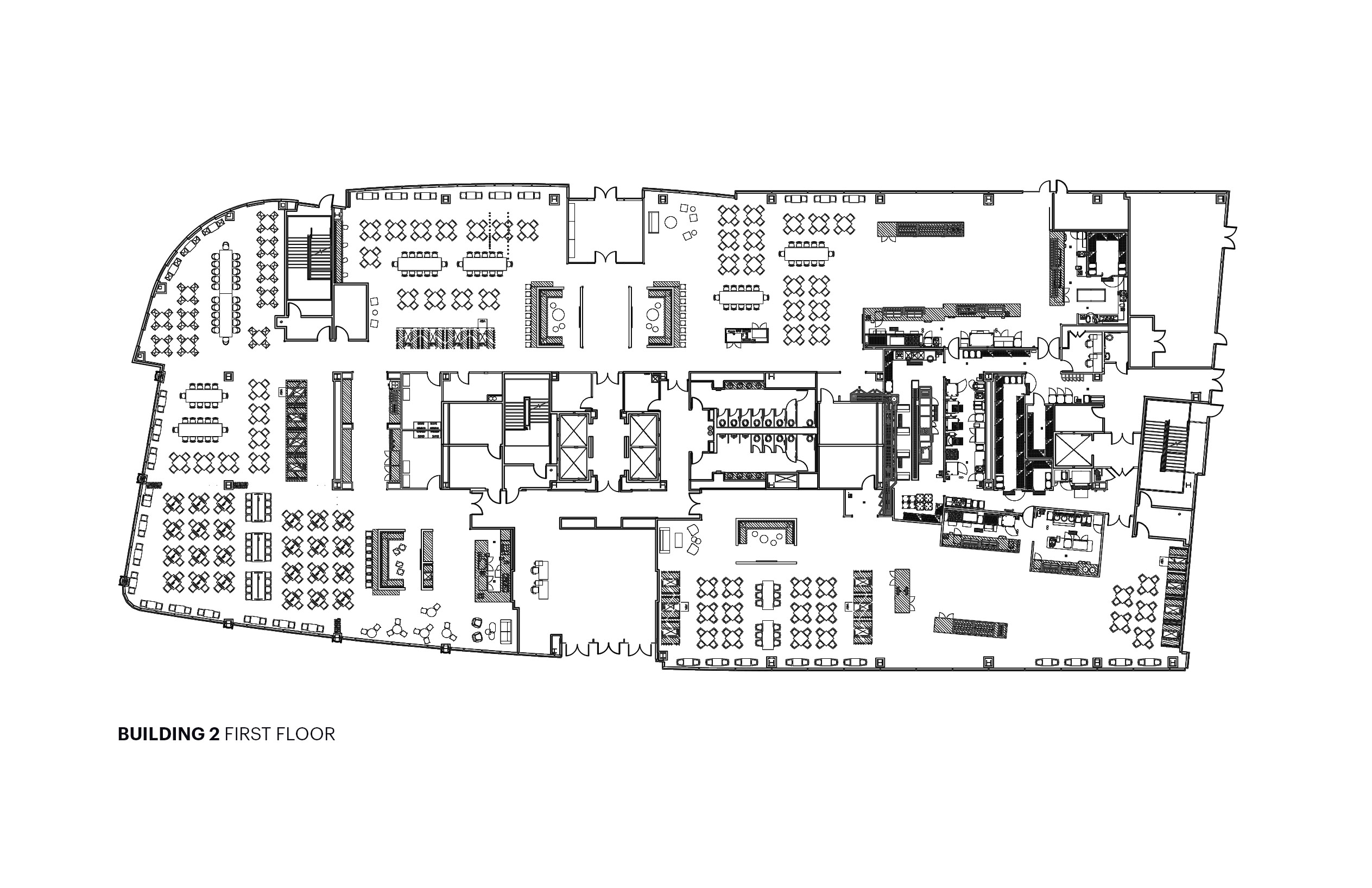

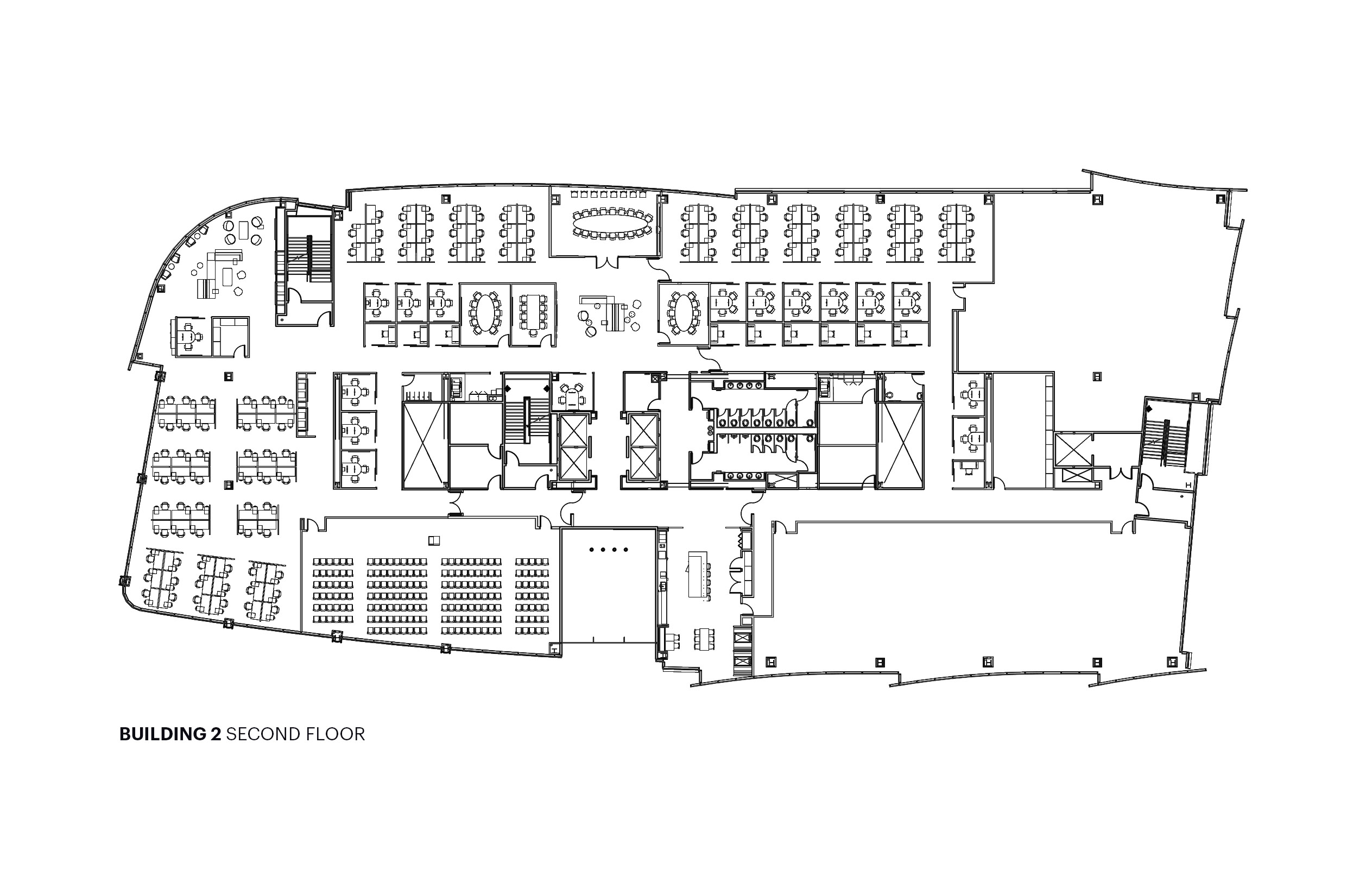

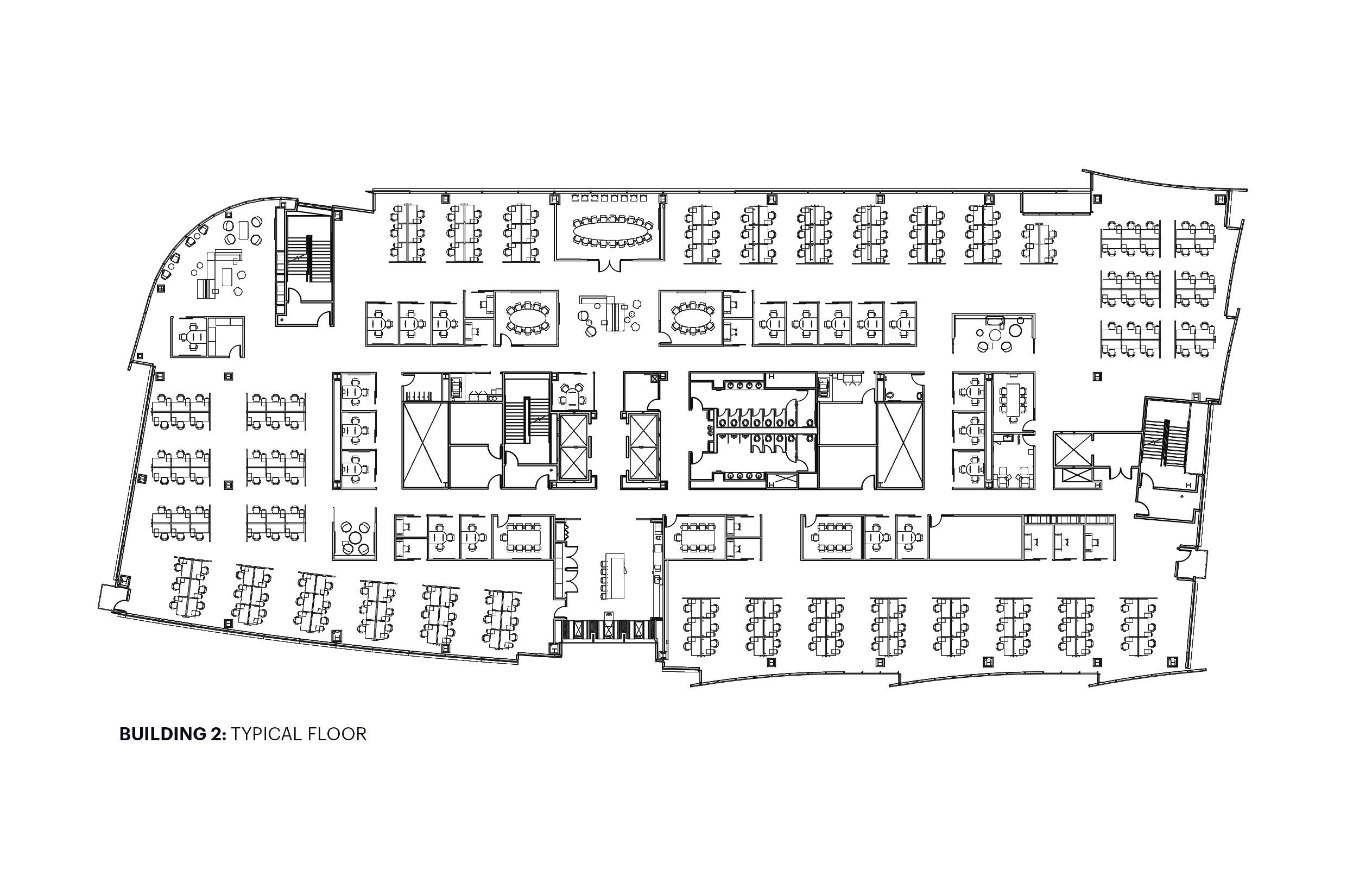

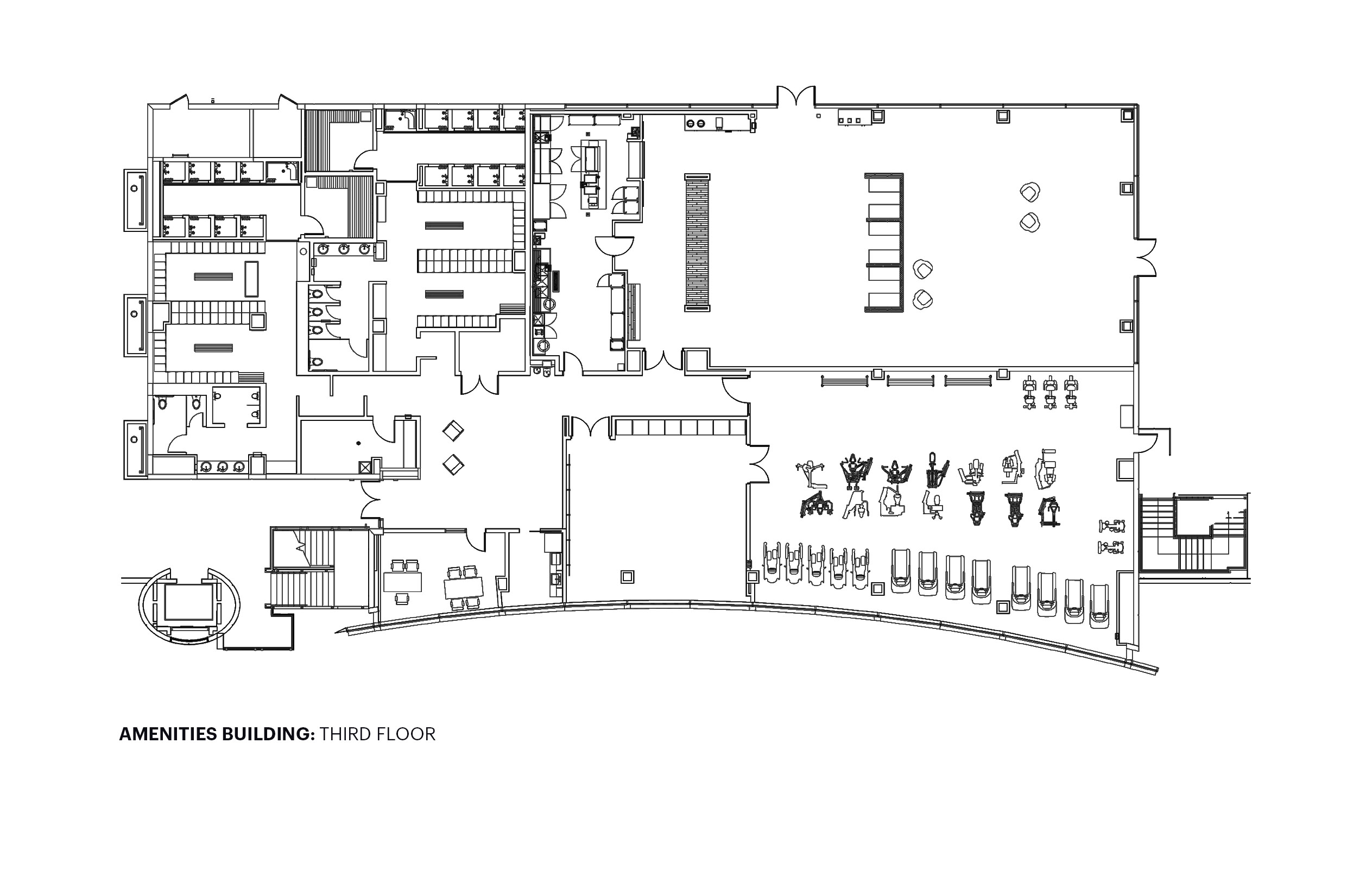

Floor Plans

Fitness Center
‍

Property Specs

Campus Size

15.5307-acre site
554,070 SF rentable
Amenities: 12,000 SF
Roof Garden: 26,600 SF
Two (2) Class-A office / R&D buildings

Building Location
& Sizes

B1:

1225 Crossman Ave, Sunnyvale
7 story, 300,432 sq. ft.

B2:

1265 Crossman Ave, Sunnyvale
7 story, 300,432 sq. ft.

PS:

1249 Crossman Ave, Sunnyvale
Partial Basement / 3 Tier

Sustainability

B1:

LEED Platinum certification

B2:

LEED Platinum certification

Outdoor Plaza & Amenities

Central Outdoor Commons created out of scupltural tree-lined berms, flanked w/ Collaboration and Seating spaces
Rooftop Garden w/ Outdoor Kitchen/BBQ, Multiple Trellis Shaded Areas, Bocce Courts, Bar Counter Space with Storage, Fire Pits, Kitchen Garden w/ Edible Plants, Outdoor Fitness, Outdoor Seating Areas

Floor Heights

Office Buildings
• First floor: 16'
• Second to seventh floor: 14'
‍
Parking Structures
• Tier 1: 11'-6"
• Tier 2-3: 12'-2"

Parking

• Provided Parking : 3.33/1,000
• Parking Structure A: 685
• Surface Parking: 1,080
• Total Stalls: 1,764

Elevators

Office Buildings
• Service: Gen2 Capacity = 3,500 Pounds
‍
• 4 Passenger Elevator Gen2 Capacity = 3,500 Pounds

Parking Structure
• 1 Passenger Elevator - Gen2
Capacity = 4,000 Pounds

Electrical System

PG&E Electrical Service

B1:

2000A & 4000A Service

B2:

2000 & 4000A Service

PSA:

1600A Service

Life Safety Generator

B1:

450 KW / 562.5 kVa

B2:

450 KW / 562.5 kVa

Electrical Service to the Building’s Main Electrical Room with Secondary Distribution to Each Floor. Electrical Room and Equipment Penthouse. Service Includes Connection to all Shell-installed Equipment, Building Cores, and Lobby Areas
Two Electrical Rooms All Levels (Bus Duct Riser’s in each, 480/277v Panel’s, Step Down Transformer’s and 120/208v Panels Only in One of the Electrical Room Riser per Floor)

Tenant allowances:

5.0 watts/sqft for Receptacles
3.5 watts/sqft for Lighting, and Support up to 1500Kw of Additional Tenant Loads

Building Envelope

Aluminum curtain wall, Unitized system by Walters and Wolf
Vision Glass (Glass Type 1): Viracon VRE26-59, 1” thick insulated glass
Spandrel Glass (Glass Type 1): Viracon VRE26-59, 1” thick insulated glass, #4 - Color BM1630 “Ocean Floor” = VC-733 “Wacker Blue”
Vision Glass (Glass Type 2): Viracon VNE26-63, 1” thick insulated glass
Spandrel Glass (Glass Type 2): Viracon VNE26-63, 1” thick insulated glass, #4 - Color BM1630 “Ocean Floor” = VC-733 “Wacker Blue”
Metal Panel System

Heating, Ventilation and Air Conditioning

Mechanical Equipment - Landlord Installed

4 Supply Fans (with VFD’s)
8 Relief Fans (with VFD’s)
2 Chillers (Water Cooled)
2 Cooling Towers
3 Boilers
Total Cooling Capacity = 700 Ton
Total Heating Capacity = 5,000 MBH
Cooling System Airflow = 1.04 CFM/Floor
Built Up Air System
Stairwell and Hoistway Pressurization Fan
Exhaust Fans for Toilet/Janitor Spaces

Additional Provisions

Additional Cooling (285 SF/Ton),
Pipe Risers 2 = 350 Ton
Exhaust for Tenants = 300 CFM/Floor
Structural Support/ Roof Provisions for Added Cooling
Duct/VAV Boxes/Air Distribution to Serve Lobby’s and 1st floor Restrooms
Vertical Supply Duct and Plenum Shaft Return with FSDs at Each Floor. HW Piping Riser to Each Floor.

HVAC

Built-up Supply Air System in Penthouse, Vertical Distribution to Floors
All Finished Core and Lobby Areas will Have a Completed Mechanical System per Landlord’s HVAC Criteria.
No Duct Loop Per Floor

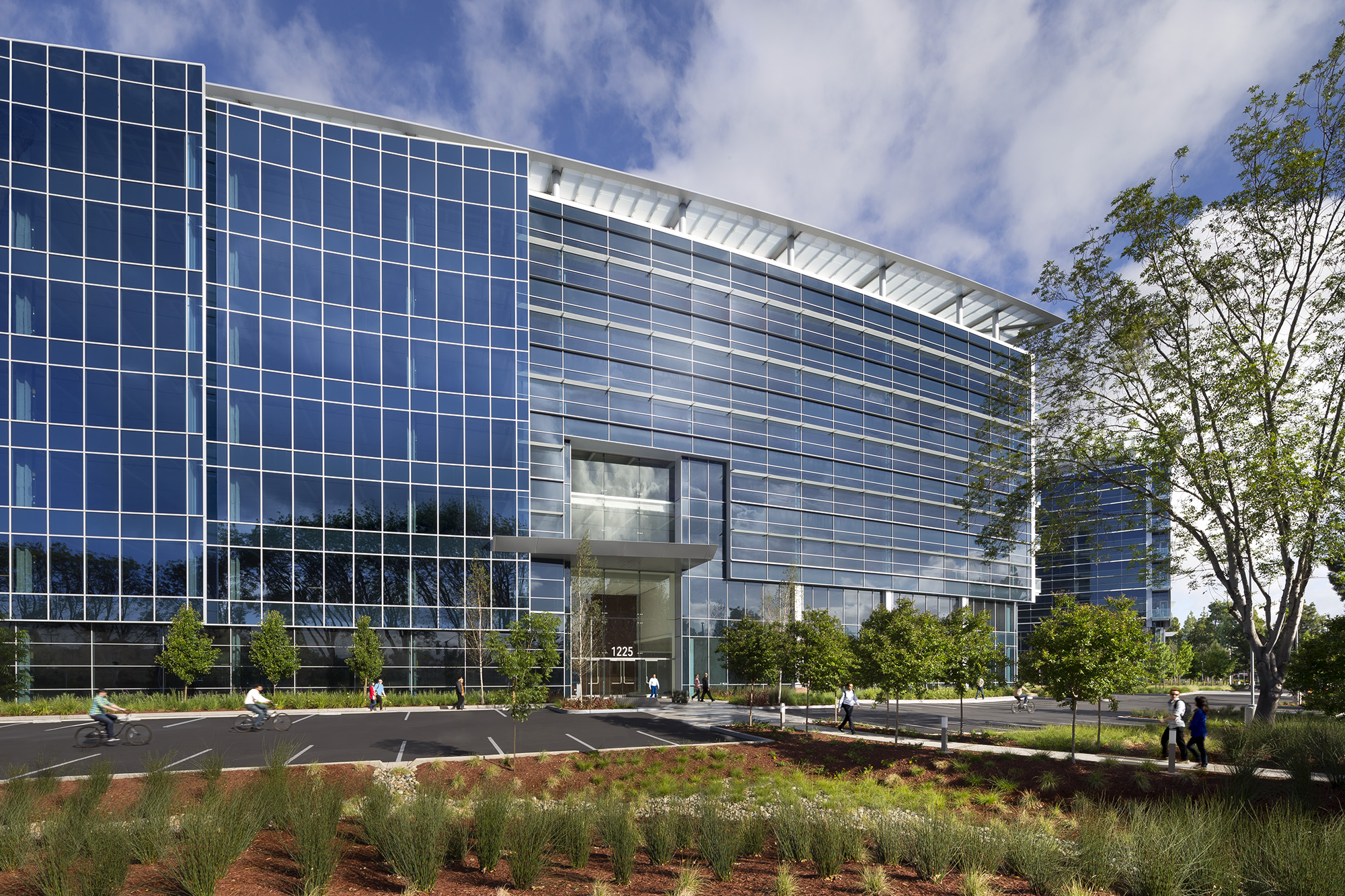

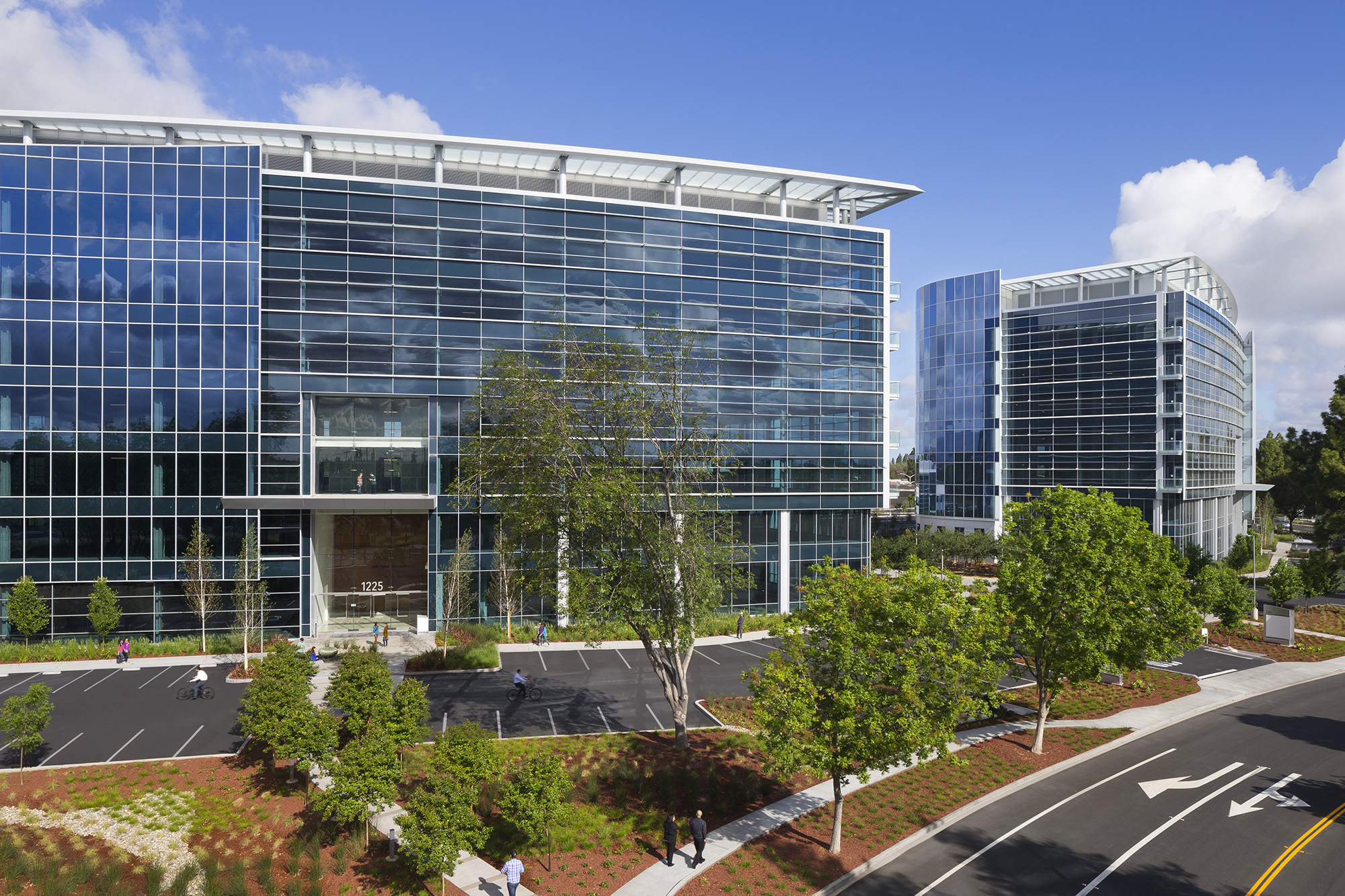

View from Crossman Ave

prime Location

Location

Strategically positioned at the south-east gateway to Moffett Park, Moffett Gateway connects tenants to the entire Bay Area through direct VTA light rail access and the convergence of Highways 237 and 101. Surrounded by industry leaders, it's a campus built into the heart of Silicon Valley.

465 North Mary is in an ideal location for the digital age: an open-space campus on a tree-lined avenue between Apple and LinkedIn, with Synopsys, Google, Juniper Networks, Advanced Micro Devices and Yahoo as neighbors.

±15 Minutes from Moffett Towers to Downtown Mountain View Caltrain
±45 minutes from Downtown Mountain View Caltrain to San Francisco
±1 Hour from Moffett Towers to San Francisco Via VTA + Caltrain

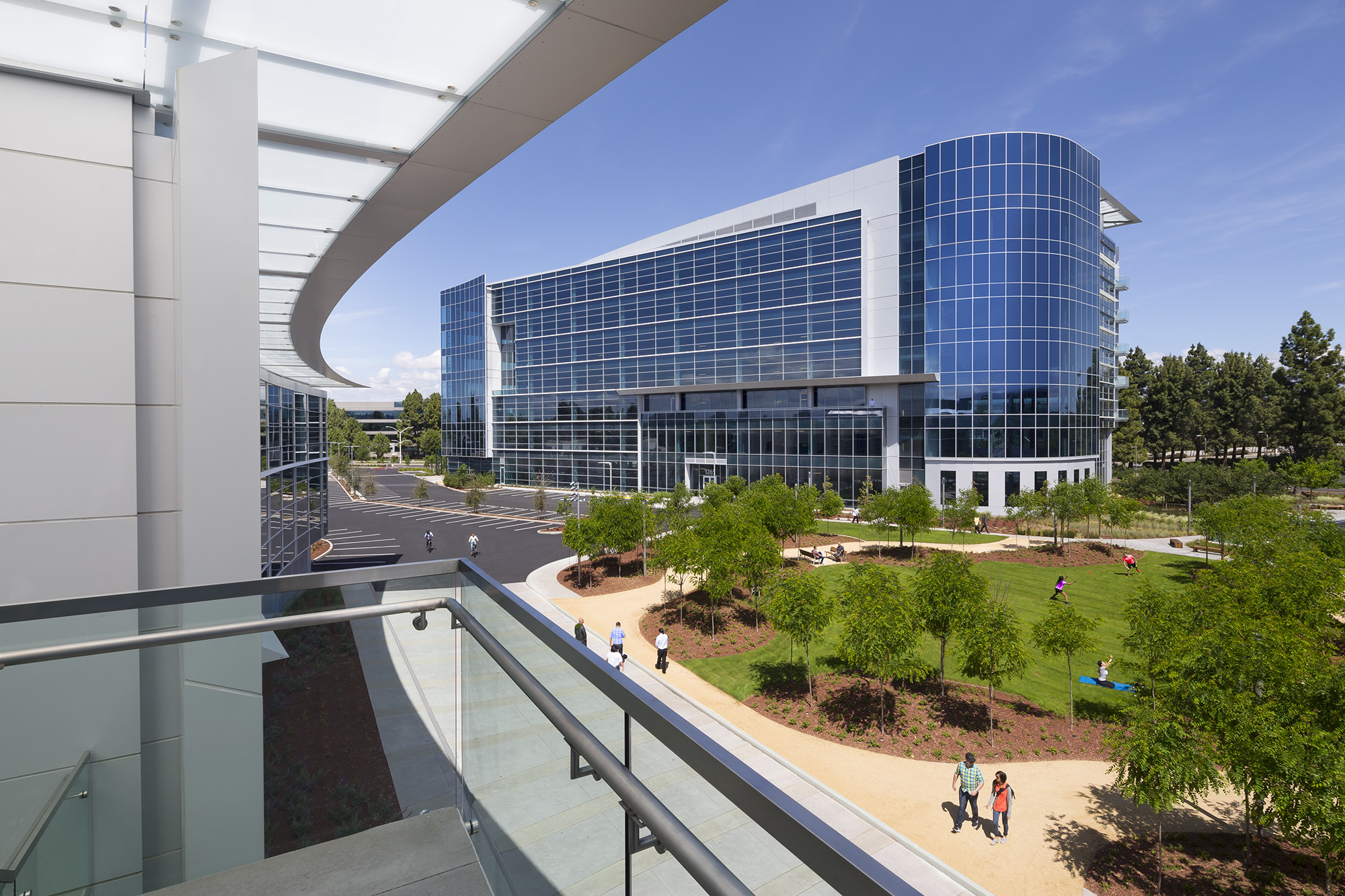

View of Building 2

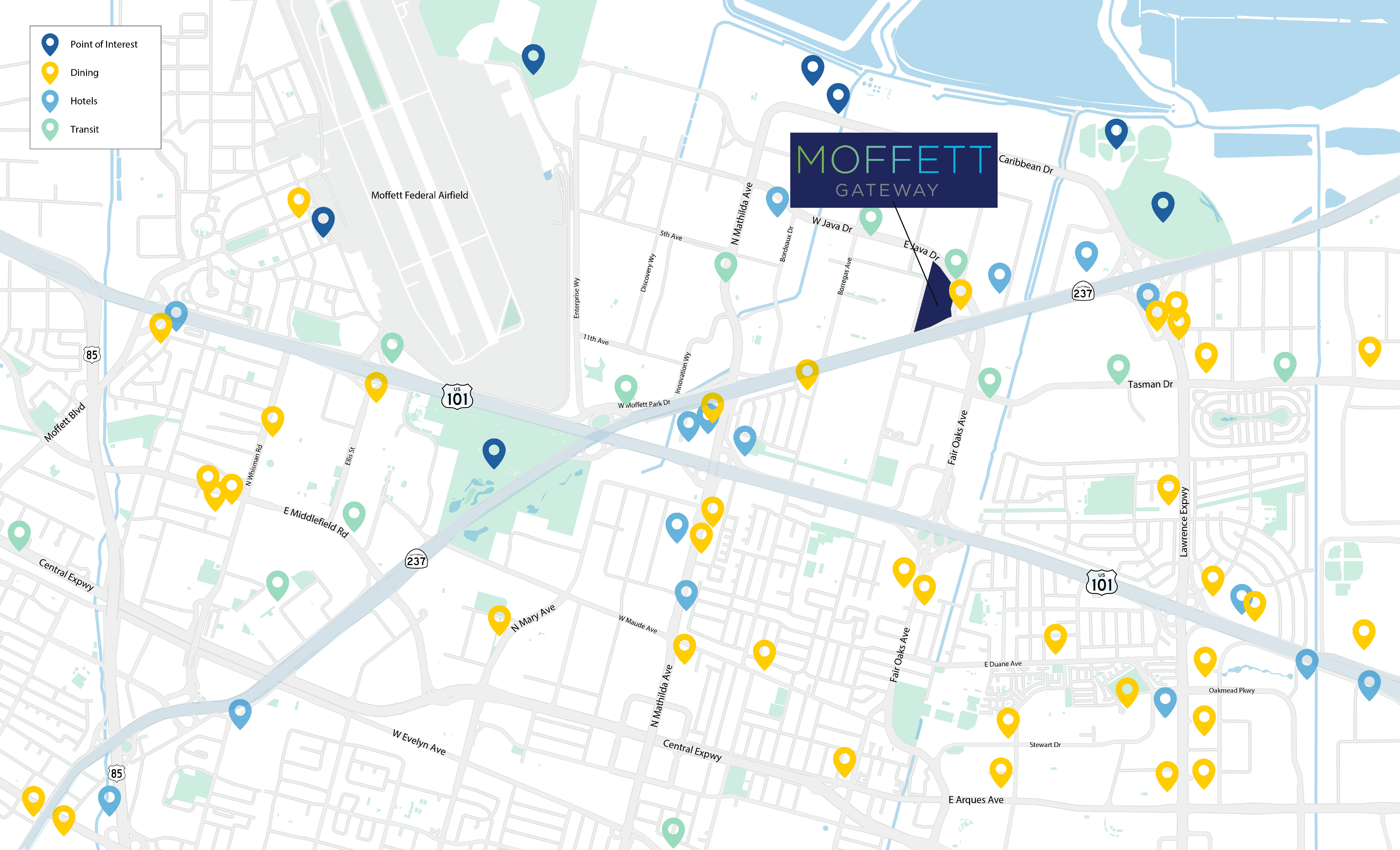

Vicinity Map
